Chiller Monitoring Webbased
A web-based IoT system to monitor chiller machine operations in real time
IoT Chiller Monitoring System
Built an end-to-end IoT monitoring system for 2 critical factory chiller units — from sensor hardware to web dashboard — preventing unplanned downtime on the production floor.
The Problem
The blanking machines at PT Toshin depend on chiller units for cooling. When a chiller fails unexpectedly, the entire production line stops. The maintenance team had no real-time visibility into chiller health — they only knew about problems after a breakdown.
What I Built

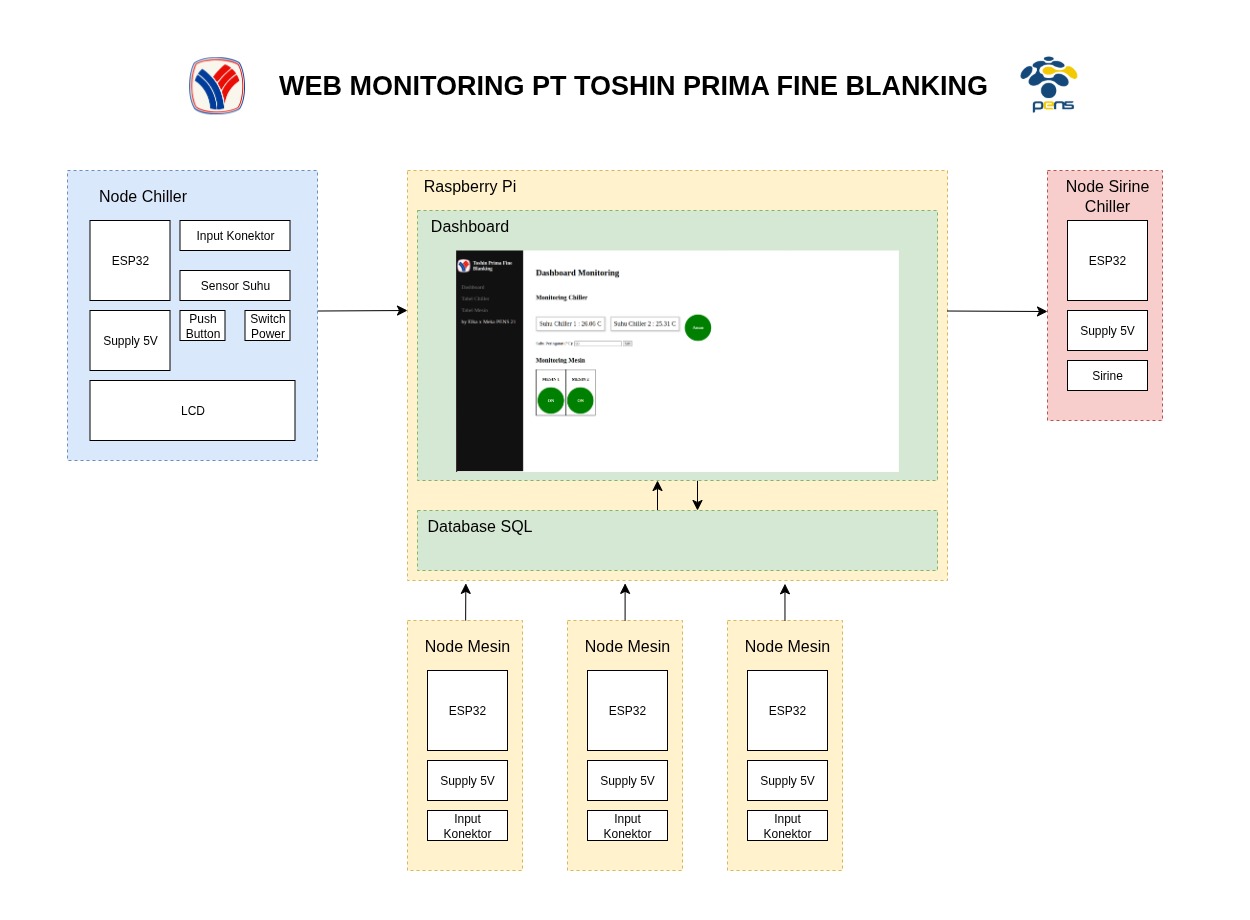

A full-stack IoT monitoring system: hardware sensors, data pipeline, and live web dashboard.

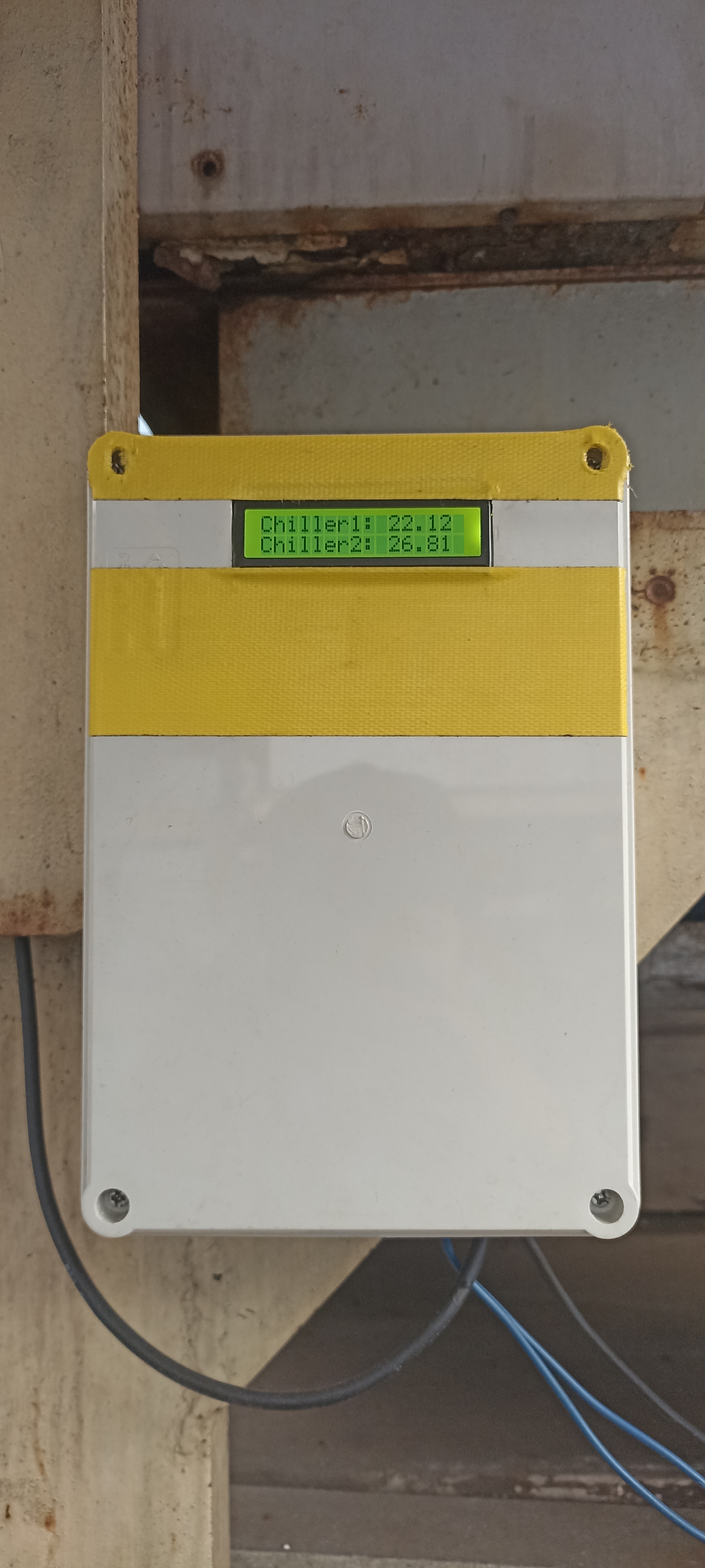

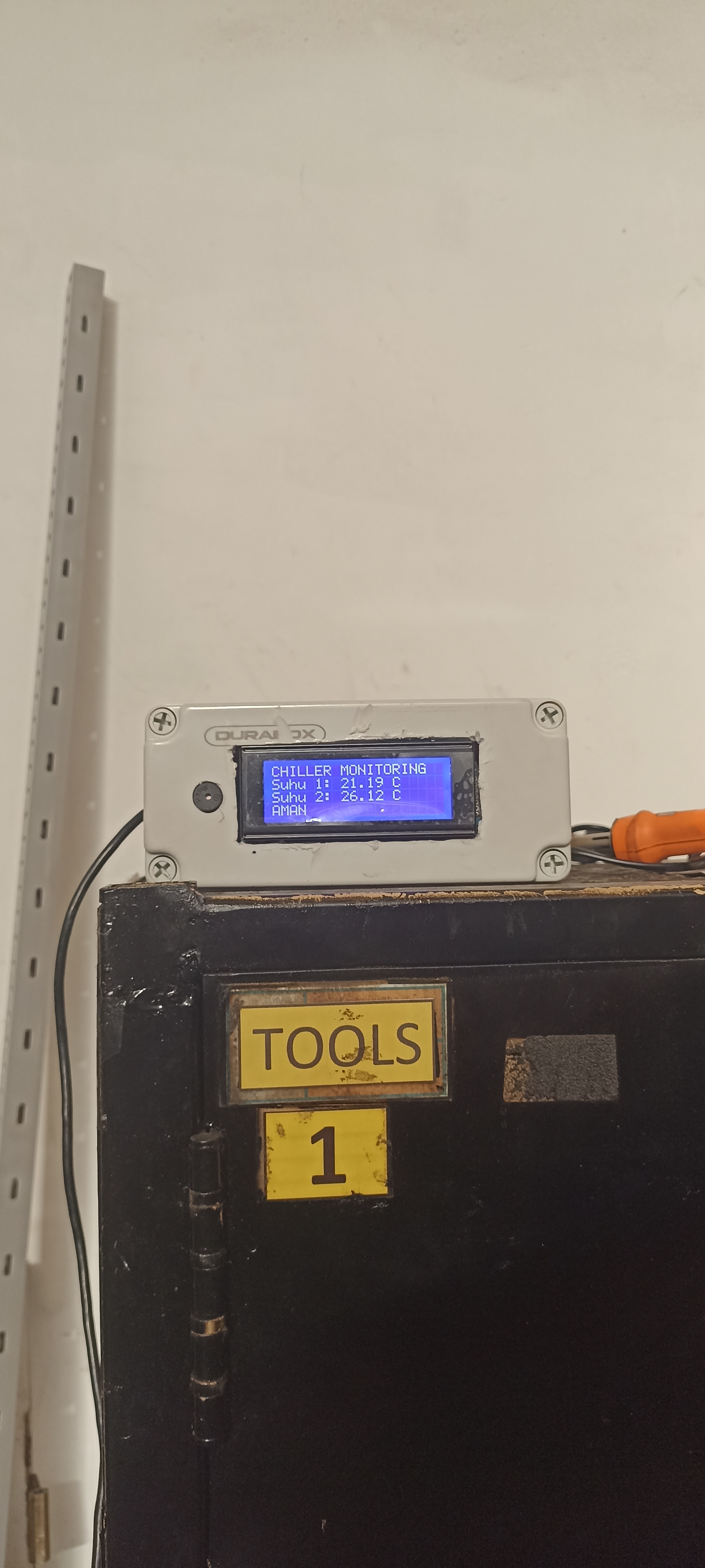

- Designed sensor nodes with ESP32 to collect temperature, pressure, and current data from 2 chiller units
- Connected to Raspberry Pi as local server — running MySQL for data storage and PHP for backend

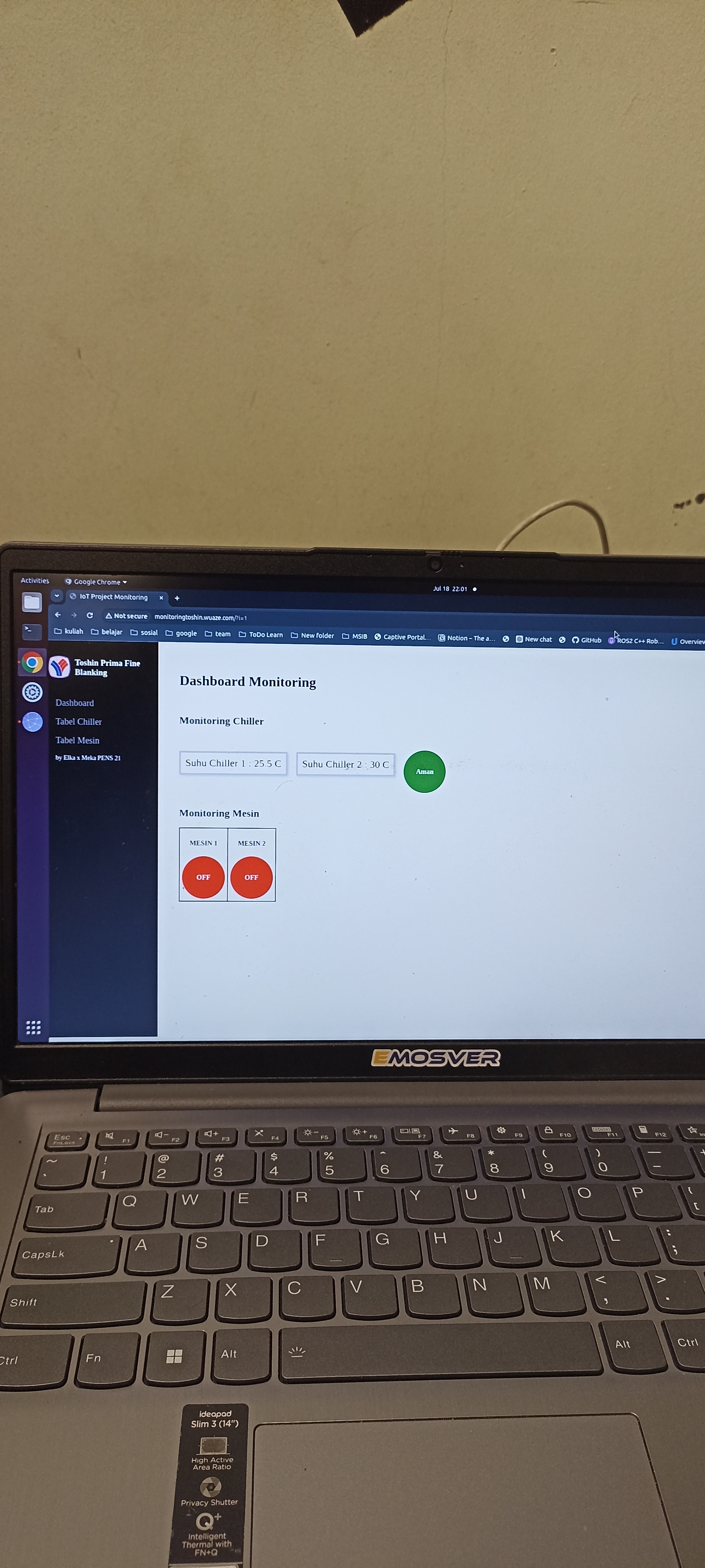

- Built a web dashboard for real-time data visualization
- Deployed on the factory local network — accessible by maintenance team from any browser
ESP32 Raspberry Pi MySQL PHP IoT
Impact
- Enabled 24/7 remote monitoring — maintenance team sees anomalies before they become failures
- Helped detect early warning patterns in temperature and pressure fluctuations
- Reduced risk of factory-wide production downtime caused by chiller failure
Documentation
